Dräger X-plore 8300

Highlights

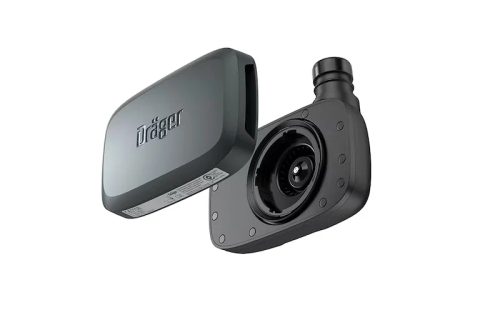

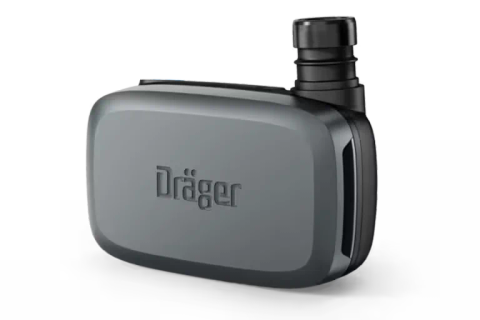

Reliable respiratory protection against harmful particles with no noticeable breathing resistance or restriction to movement: The Dräger X-plore 8300 is the smallest and lightest PAPR device in its class, offering maximum protection and comfort. The powered air-purifying respirator integrates seamlessly with the X-plore 8000 product range and can be combined with various X-plore 8000 headpieces, hoses and a wide range of carrying options and accessories.

Outstanding comfort

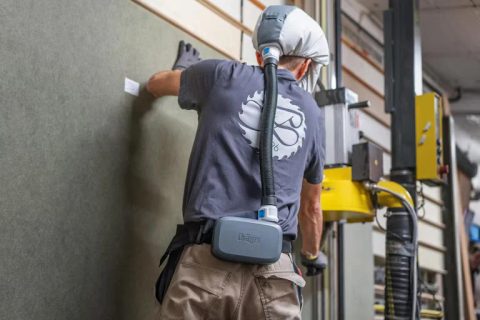

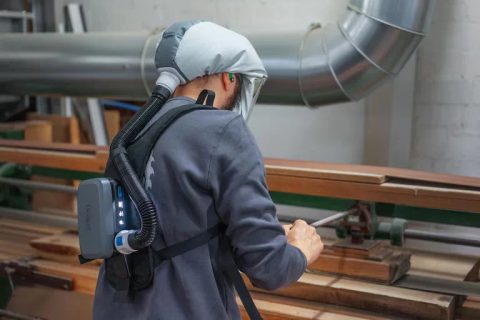

The lightest and most compact powered air-purifying respirator in its class, the X-plore 8300, combines reliable protection against particle exposure with the highest level of comfort. In demanding work environments and during long shifts, users benefit from the reduced weight and unrestricted freedom of movement. The powered air-purifying respirator is a system solution that can be paired with various waist belts and backpack options that ensure ergonomics and optimised weight distribution.

Thanks to the battery-operated blower and continuous flow operation, the X-plore 8300 eliminates breathing resistance commonly associated with other respiratory protection solutions. Fan-assisted airflow prevents heat build-up in the headpiece and visor fogging. The airflow can be adjusted in two levels to suit individual requirements and environmental conditions. The user can breathe easily, even during physically demanding tasks or extended application times.

Optimal protection

The X-plore 8300 powered air-purifying respirator is compatible with a wide range of headpieces. Depending on the type of headpiece, the system achieves the highest respiratory protection class TH3 for helmets, visors and hoods, or the equivalent TM3 for full-face masks. Due to its continuous flow operation, the X-plore 8300 system is suitable for users with facial hair or face shapes that may compromise the seal of other respiratory solutions, eliminating the need for time-consuming, costly individual fit tests.

Intuitive operation

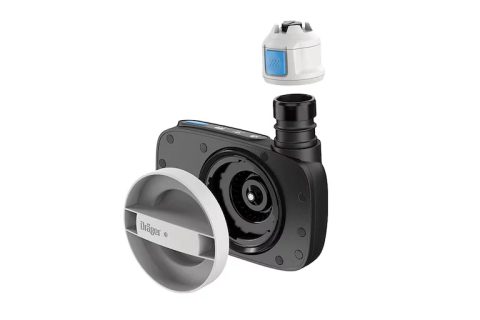

As the newest addition to the X-plore 8000 range, the X-plore 8300 system has been designed from the ground up with a focus on simplicity and ease of use. Its intuitive user interface provides a clear overview of all relevant performance parameters, with airflow rate, filter saturation and battery status continuously displayed. As filter saturation increases, the device automatically adjusts fan speed to maintain the desired airflow to the headpiece. The particle filter is easily and securely installed with Dräger's bayonet mount design.

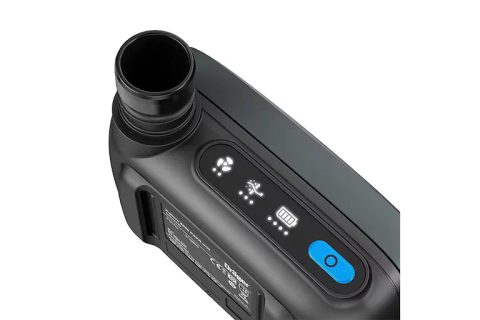

The one-button operation enables quick and easy device start-up, with the raised button design ensuring safe operation even with safety gloves. The battery status can be displayed before starting the device by pressing the power button briefly. Turning the unit on and off requires a longer press to prevent accidental shut-off during use. During operation, a quick press of the button switches between the two flow rates.

Robust and powerful design

Like all Dräger protective equipment, the X-plore 8300 system is built for safe use in challenging work environments. With its IP67 rating, it is optimally suited for manual and machine cleaning. An optional spark arrestor protects the particle filter from sparks and provides added impact protection, expanding the system's application range to include welding, cutting and grinding tasks.

The X-plore 8300 powered air-purifying respirator is equipped with a high-performance battery with up to 11 hours of runtime, depending on system configuration and flow rate. A quick-charge feature allows the battery to charge up to 80% in two hours, with short charges during breaks significantly extending device runtime. High-performance, durable components, like the blower, ensure reliable operation with minimal maintenance requirements. All essential maintenance tasks, such as battery and blower replacement, can be performed independently and on-site by trained personnel.

Enhanced operational safety

The X-plore 8300 is designed with high operational safety in mind. Its design minimises the risk of user errors, and a range of automated safety features eases the user's workload and allows them to focus fully on the task at hand. The device conducts an automatic self-test on start-up to ensure full functionality, allowing users to begin work without a manual pre-test.

A redundant alarm system with audible and visual alerts notifies users of limitations, such as low battery or increased filter saturation. An RFID sensor automatically recognises the connected hose type and adjusts the minimum required airflow based on the headpiece type. The system distinguishes between loose-fitting headpieces like helmets, hoods, visors and tight-fitting types like full-face and half masks. If the breathing hose is incorrectly connected or not securely attached, the device reliably warns the user. As an added safety measure, the attached hose also locks the filter's bayonet connection, preventing accidental disconnection during confined space work.

Thorough cleanability

Working in highly contaminated environments or ultra-clean labs demands maximum cleanability of protective equipment. The X-plore 8300 meets this requirement with smooth surfaces, generous radii and minimal gaps. This significantly simplifies the cleaning and decontamination process. For especially sensitive applications, the device can be machine-washed with two washing plugs for the blower inlet and hose connection, achieving the required IP67 rating. Thanks to its sophisticated design and with its IP67 rating, the X-plore 8300 system can also be cleaned in a decon shower during operation.
